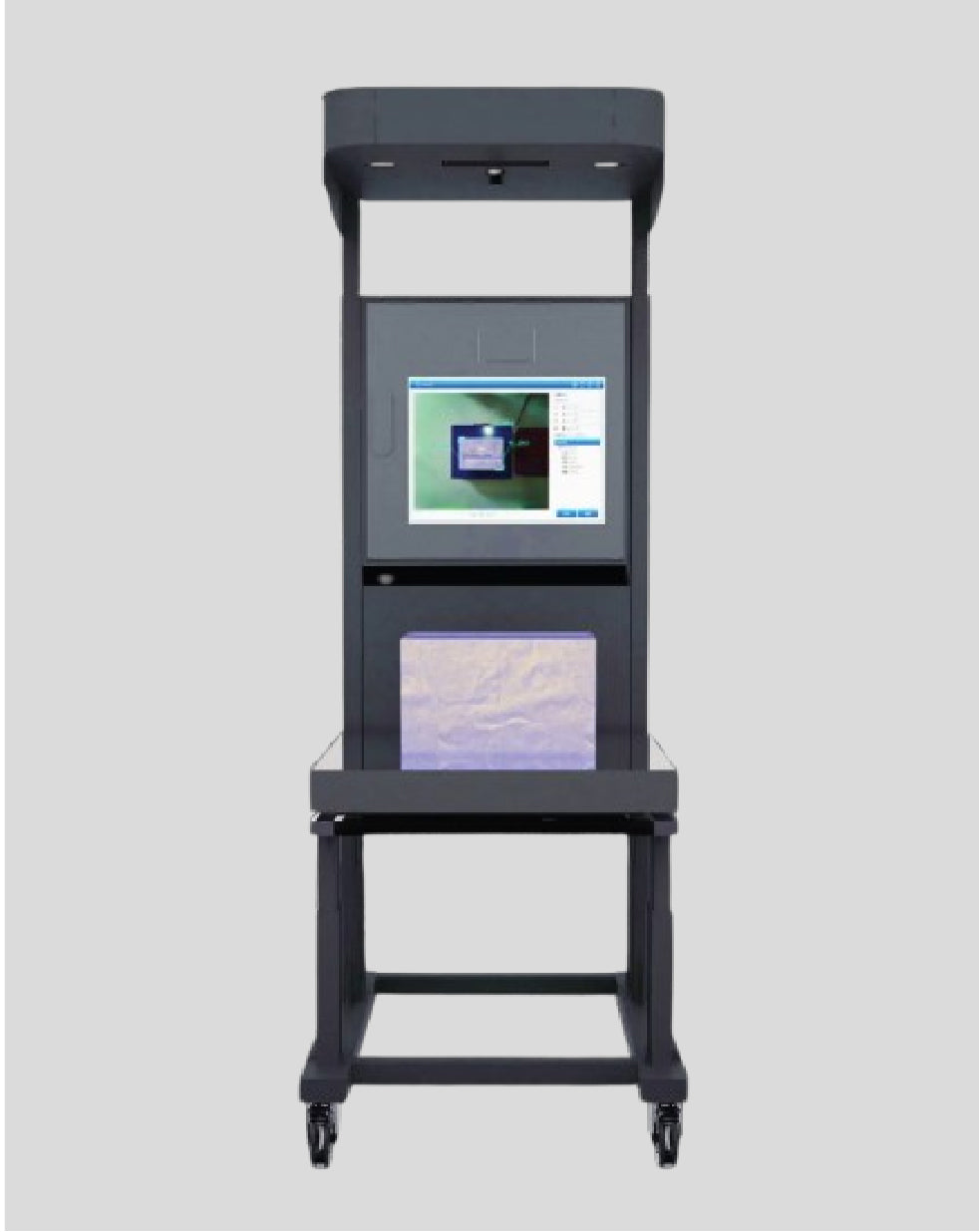

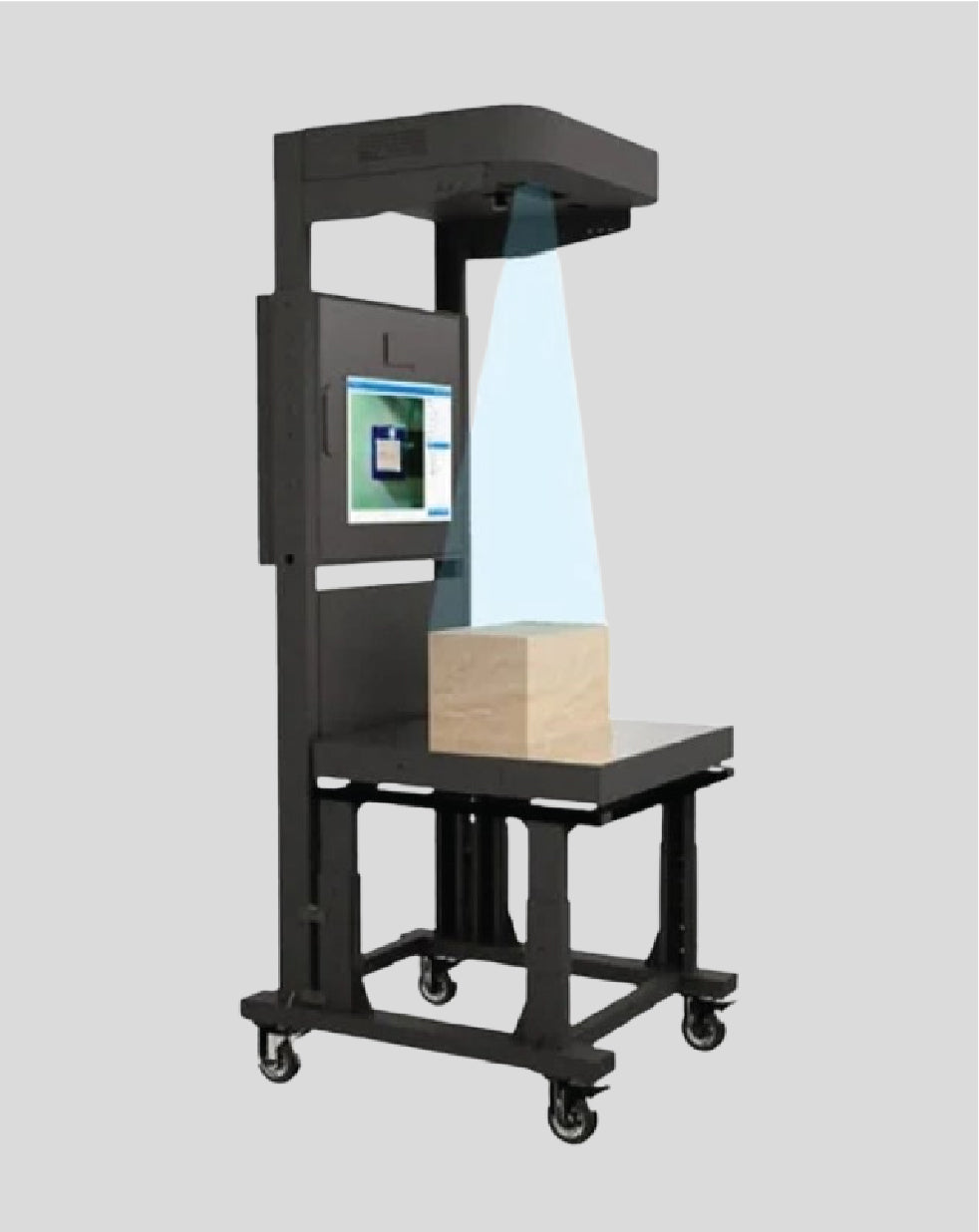

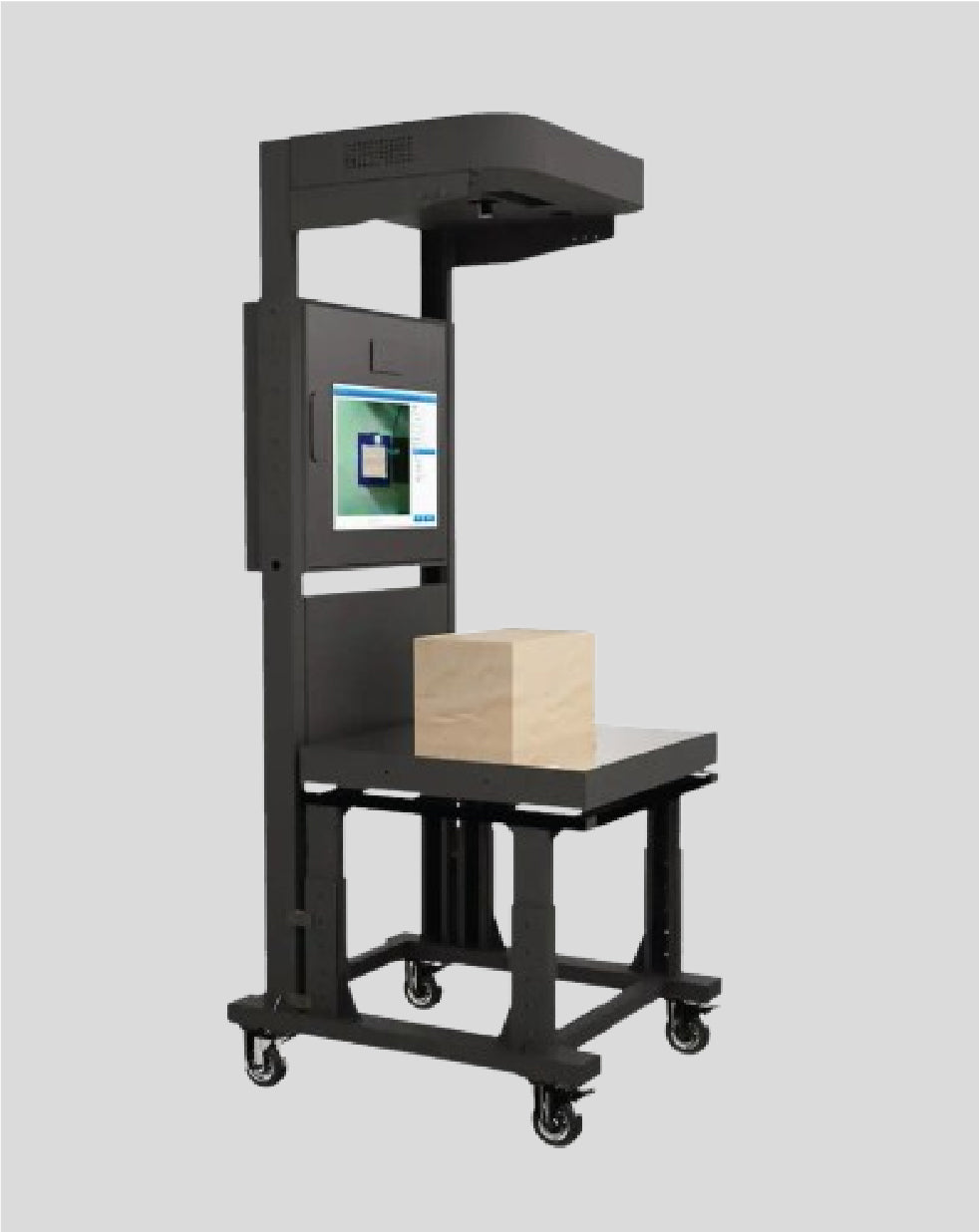

Dimension Weight System (DWS)

EQ-HKC-600 All-in-One Barcode Scanning & Weighing System. Dimension Weight System – Industrial Parcel Dimensioning, Weighing & Scanning Solution.

A high-performance all-in-one barcode reading and weighing system designed for logistics centres, warehouses, couriers and e-commerce operations. With industrial-grade HD imaging, ultra-fast data processing, and precision weighing up to 150kg, it ensures maximum efficiency and accuracy in package handling and data collection.

This System is Suitable for the growing E-commerce businesses in Pakistan. Logistics, Courier and Other Businesses that Process Huge Amount of Parcels on Daily Basis. The System Accurately Measures Size, Dimension and Weight of Each Parcel to Ensure Accurate Calculations of Your Parcels and Shipments.

Features:

• High-speed scanning — improves efficiency by more than 90%
• 600W industrial HD camera for clearer industrial vision
• Accurate and fast package identification with high-precision weighing
• Upper and lower error not more than ±10g
• Compact structure and high build quality
• 256GB SSD for fast image storage and data processing
• Sufficient storage space, suitable for logistics outlets, distribution centers, and e-commerce warehouses
• Operation Time Limit: 3,000 pieces/hour
• Maximum Package Size: 500mm × 500mm × 500mm
• Finest Barcode: 10 mil
• Weighing Range: 20g – 150kg
• Weighing Accuracy: ±10g (optional ±1g)


Specification:

• Product Name: HKC-600

Main Engine:

• Processor: i3-4130
• Caliche: 128 GSSD SSD
• Internal Storage: DDR38G
• Network Card: Expand thePICE1gigabit network port

Indicator:

• Panel size: 19.5 Inches
• Screen Than: 16:9 Widescreen
• resolution ratio: 1920x1080

Read Code Camera:

• Panoramic Camera: not have
• Ken: 600mm×450mm
• Depth of Field: 550 MM
• Barcode Minimum Interval: 10 MIL
• Read Code Accuracy: >99.99%
• Barcode Type: Code 128, Code 39, Code93, Codabar, EAN, et al
• Read Code Camera: 6 million industrial integrated code readingcamera*1set

Electronic Balance:

• Weighing Range: 20g~150kg
• Scale Countertop Size: 400mm×500mm
• Peighing Precision: 10g (optional 1g)
• Scale Table Materia: Carbon steel spray plastic

IO:

• The Keyboard Mouse: Wired key mouse
• Loud Speaker Box: The USB power supply is provided for 3W

Source:

• Power Supply Mode: AC220V
• Power Dissipation: 360W

Structure:

• Product Size: 510mm×520mm×1900mm
• Product Weight: 55kg
• Material Type: Sheet metal sprayplastic

Work Environment:

• Working Temperature: 0～40℃
• Working Humidity: 40%~ 70%RHwithoutcondensation

Applications: Ideal for use in warehouses, logistics, and packaging industries where precise measurement and scanning are essential for operational efficiency.
