Hydraulic Rotation & Electric Clamping Drum Stacker

Model: EQYL-350 Hydraulic Rotation & Electric Clamping Drum Stacker – 350kg Capacity

The EQYL-350 Drum Stacker is built for efficient and safe handling of 55-gallon steel or plastic drums. With electric clamping, hydraulic rotation, and a 350kg load capacity, it allows smooth lifting, stacking, and transporting. Equipped with reinforced chains, ergonomic controls, and durable nylon wheels, it’s ideal for warehouses and industrial applications.

Features:

Oil Cylinder: Sealed integral oil cylinder prevents leakage, improves safety, and ensures long-lasting performance.

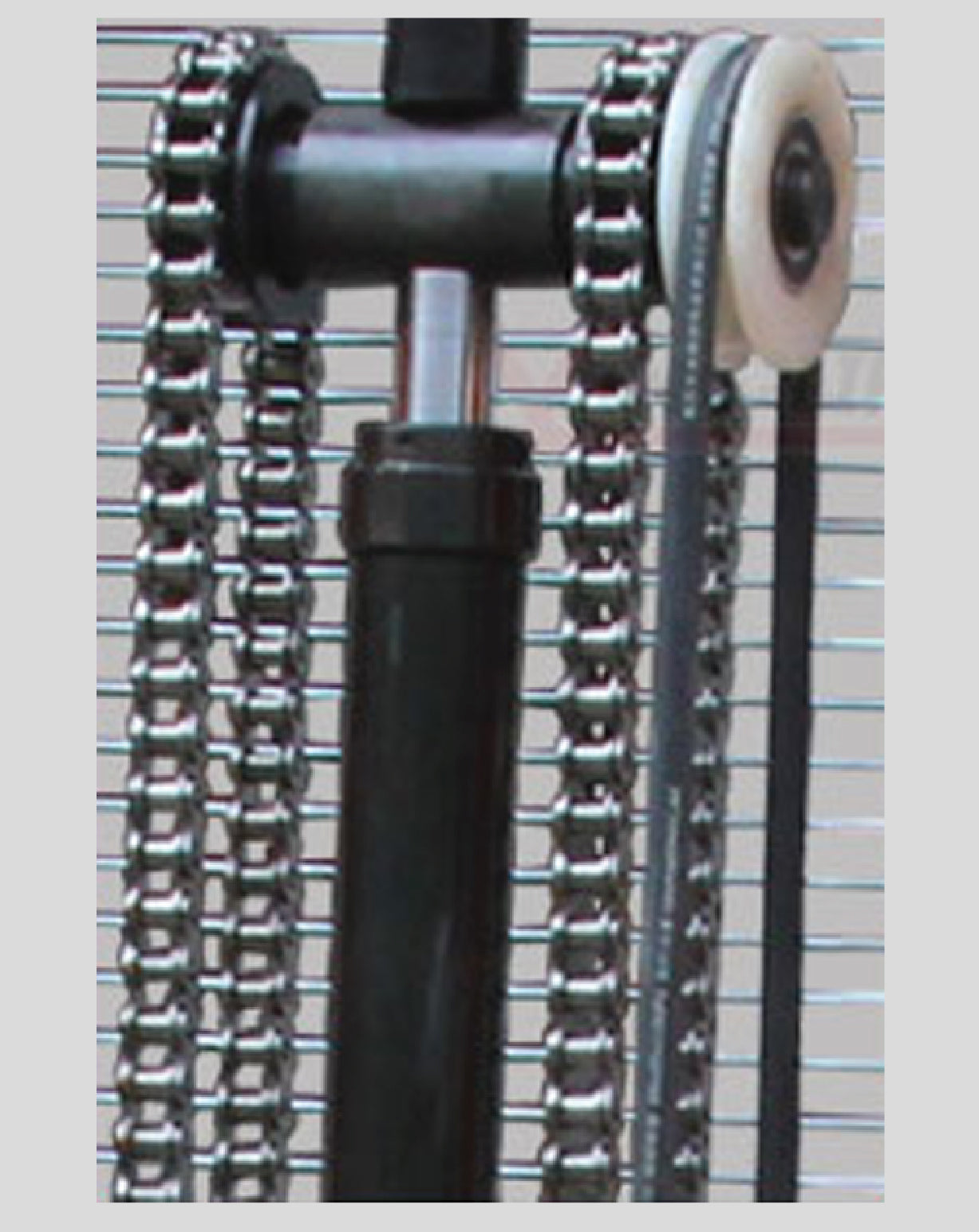

Double Chain: High-strength drive chain with reinforced durability for safer cargo stacking.

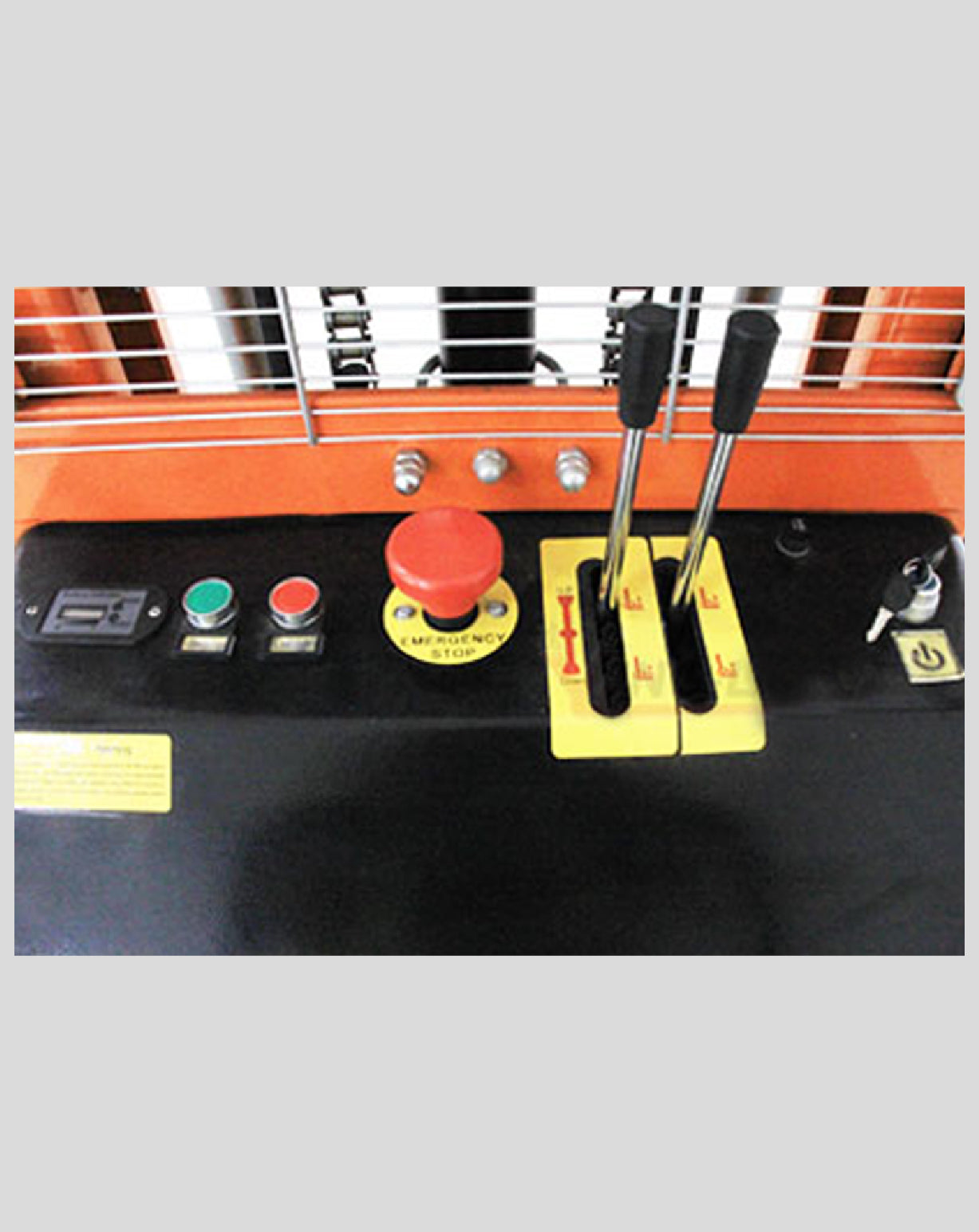

Console: Centralized control panel with clear, ergonomic button layout for ease of operation.

Rubber Handle: Ergonomically designed, non-slip outer coating provides comfortable and secure handling.

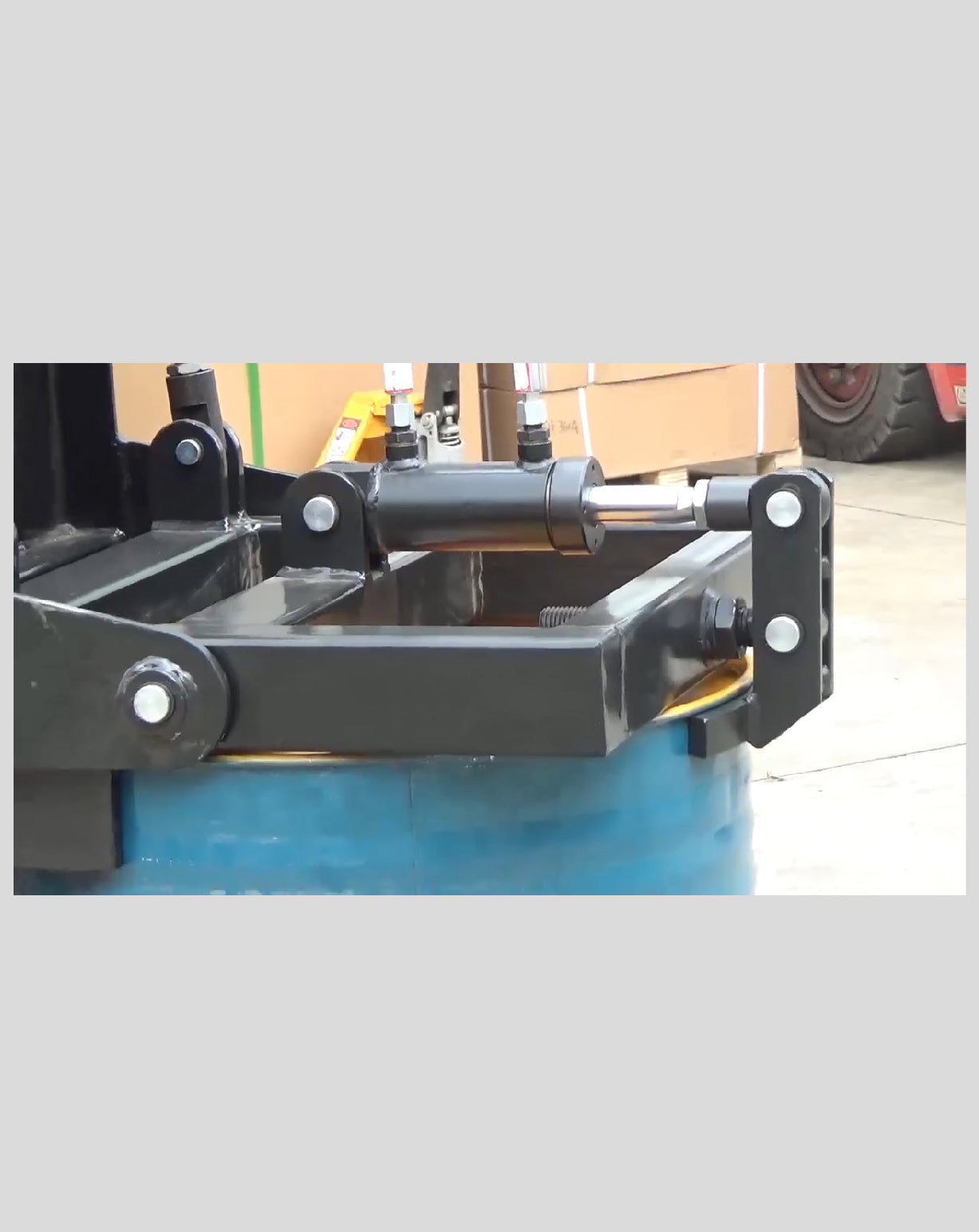

Hoop System: Electric clamping mechanism with double clamping action ensures firm and stable grip on drums.

Nylon Pulley: Strong, wear-resistant, and load-bearing wheels with brake device for stability and safety.

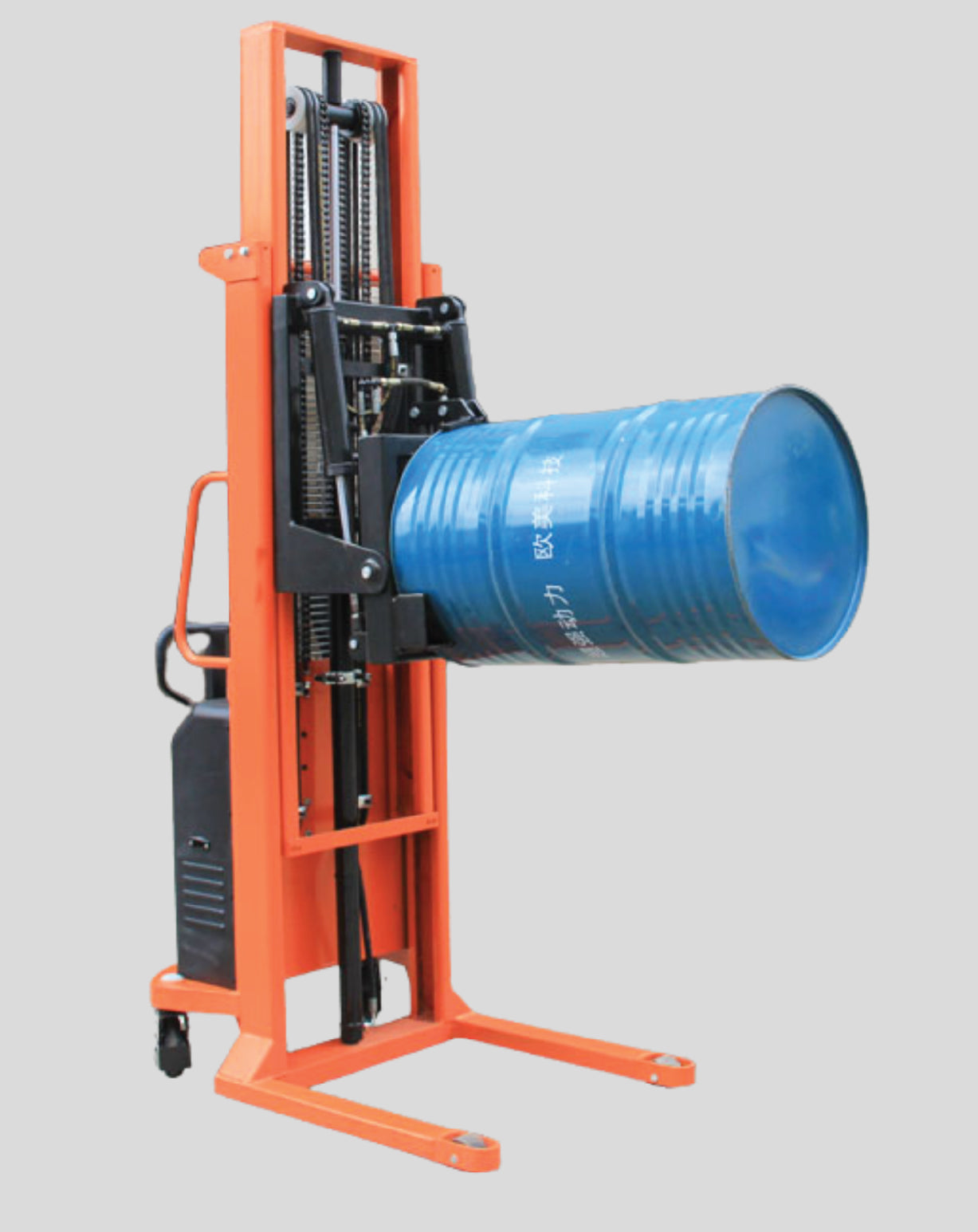

Hydraulic Rotation: Enables smooth lifting of upright drums and precise placement in a horizontal position.

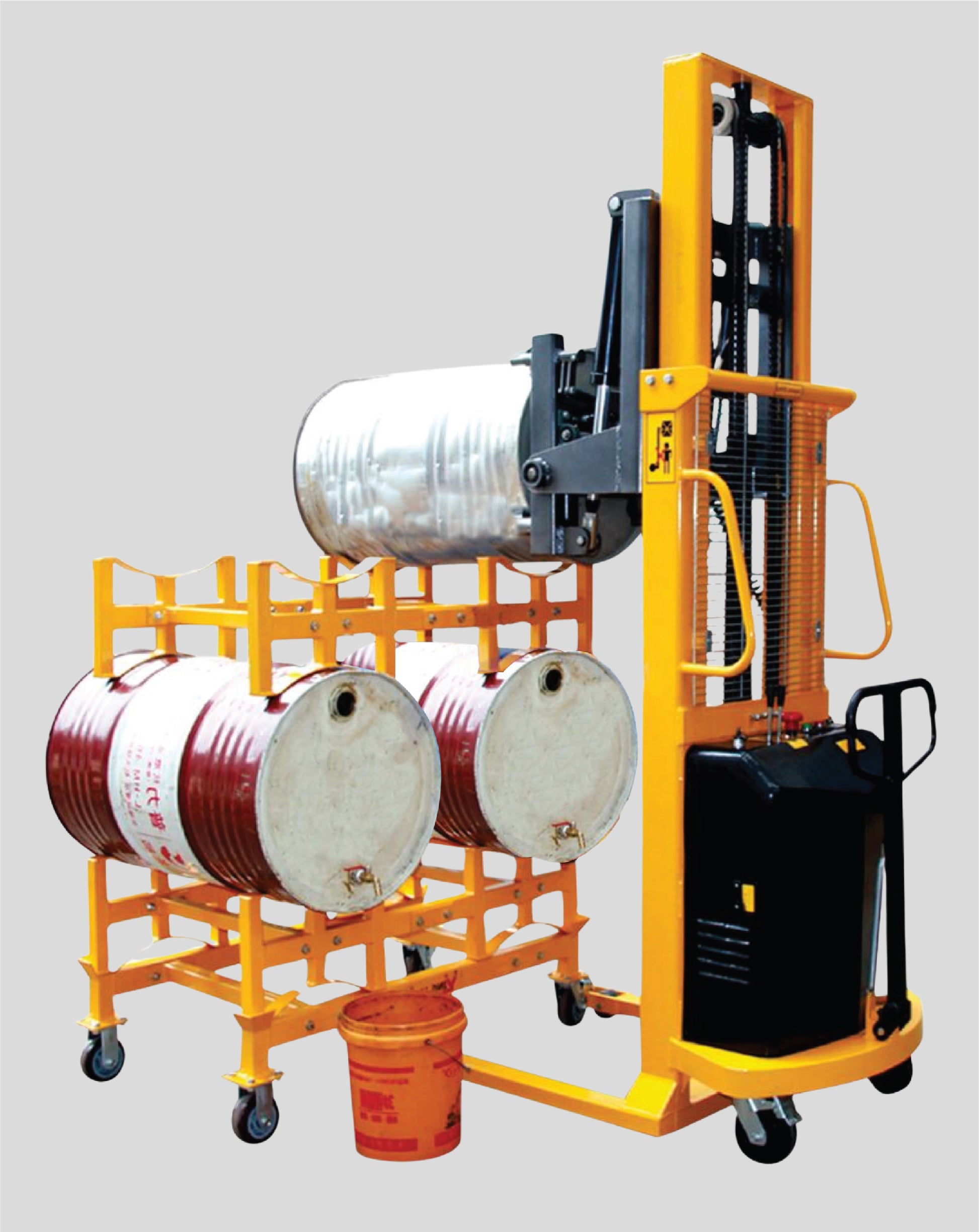

Versatile Operation: Suitable for racking 55-gallon steel with bottom rim, up to 1250mm height.

Specifications:

Model: EQYL350
Load Capacity: 350 kg
Wheel Size: 80×55 mm / 150×50 mm
Turning Radius: 1280 mm
Pump Station Power: 1.6 kW/h
Battery: 80AH / 12V
Lifting Speed: 120 mm/s
Net Weight: 415 kg
