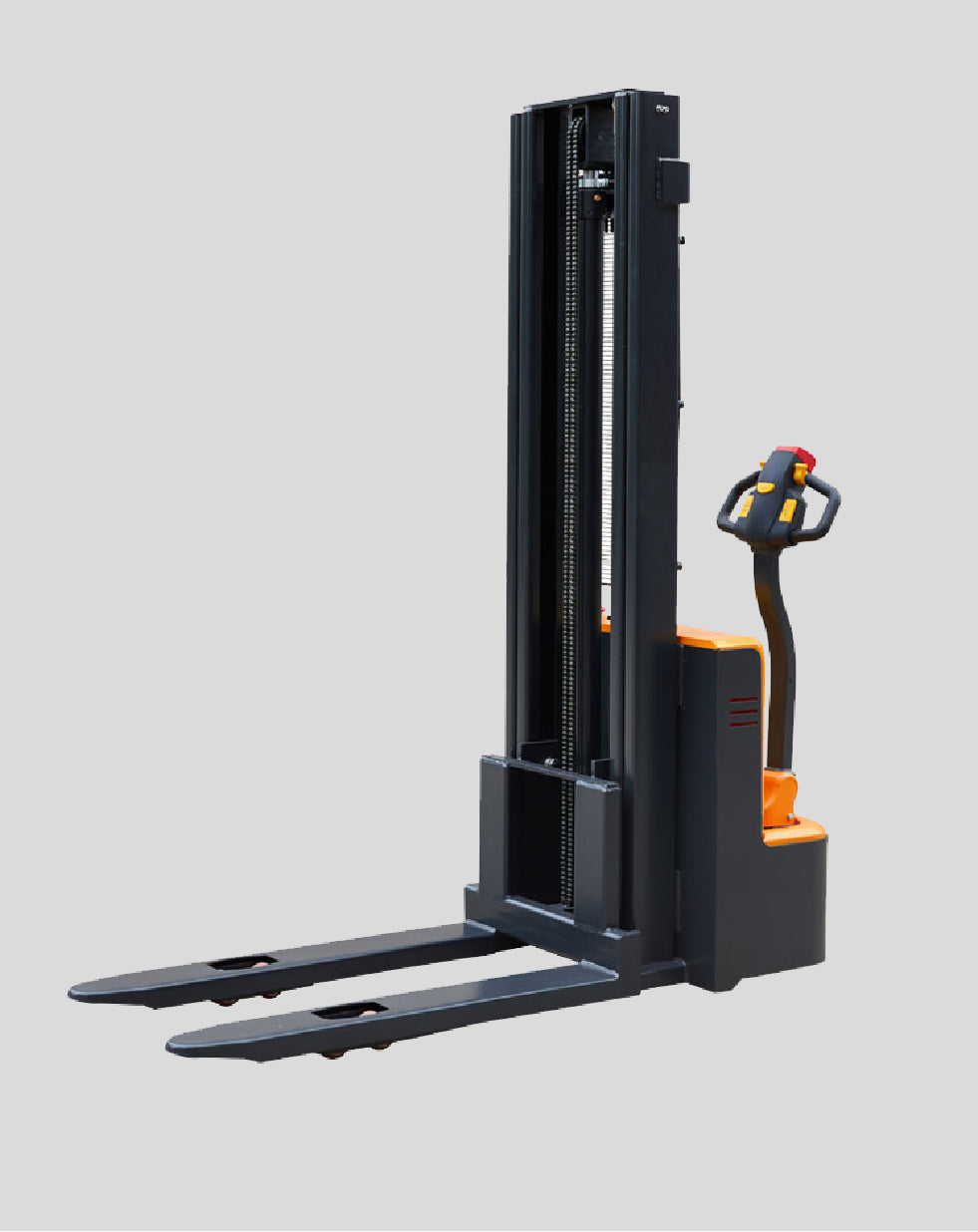

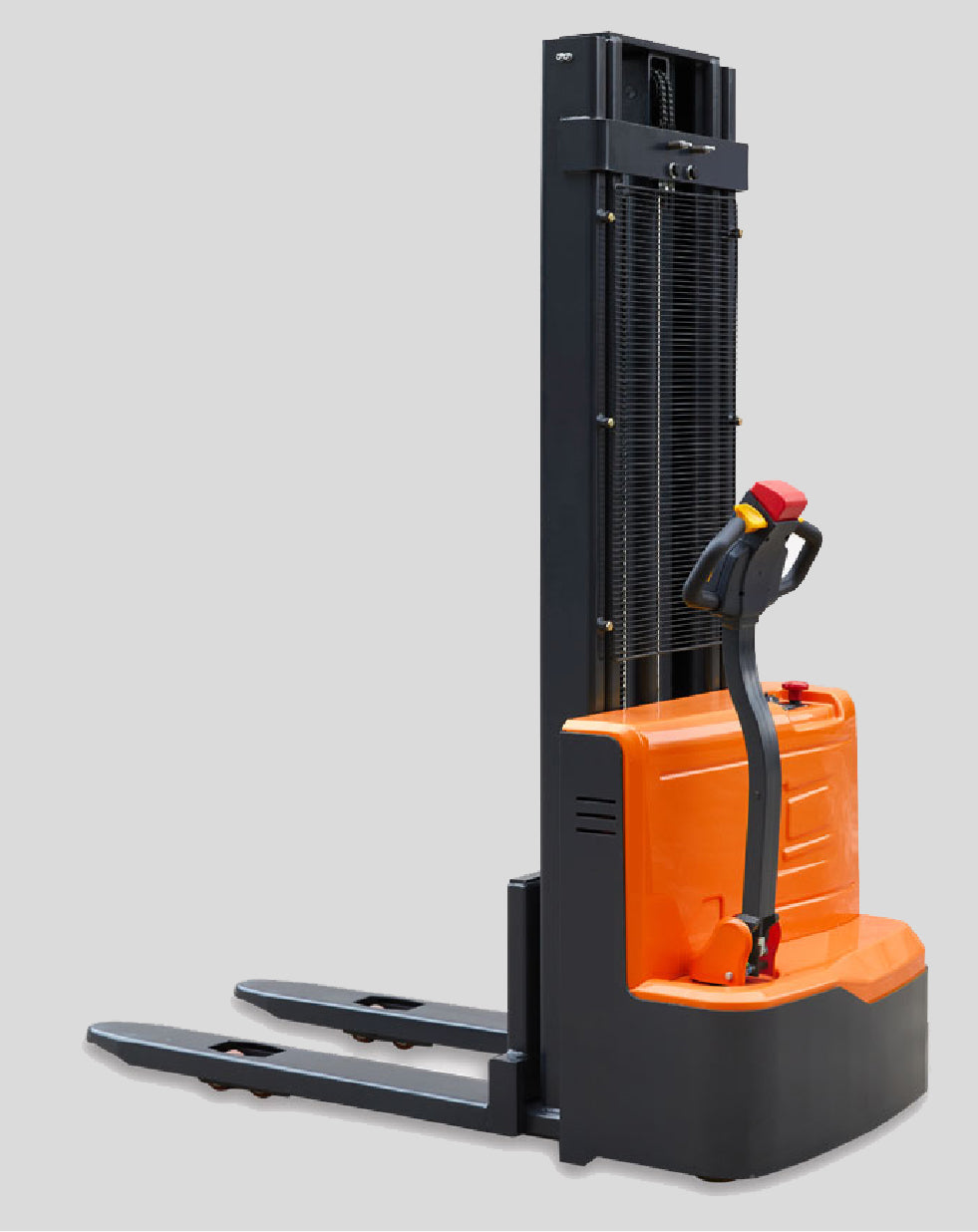

Full Electrical Stacker 1500 Kg

Fully Battery Operated Lifters and Stackers in Pakistan.

Increase productivity and reduce operating costs with our state-of-the-art fully battery-operated stacker. The battery-operated drive and lifting operations allow for increased efficiency in various industrial applications across Pakistan.

Features:

• Fully battery-operated for convenient and efficient operation
• Suitable for both drive and lifting operations
• Robust construction ensures durability and reliability
• Ideal for warehouses, logistics centres, and manufacturing facilities in Pakistan

Specifications:

• Model: EQCDD-15J
• Type: Fork Over
• Mast Type: Single Mast / Standard 2-Stage
• Load Capacity: 1500 kg
• Load Center: 600 mm
• Operating Type: Walkie
• Wheels Type: PU
• Wheels (Drive/Balance/Bearing): 1 / 1 / 4
• Lift Height: 3500 mm
• Max Extended Height: 3924 mm
• Mast Lowered Height: 2245 mm
• Fork Size (L×W×T): 1150 × 160 × 60 mm
• Overall Length: 1740 mm
• Overall Width: 795 mm
• Min. Turning Radius: 1342 mm
• Min. Aisle Width (1000×1200): 2074 mm
• Min. Ground Clearance: 26  mm
• Travel Speed (Laden/Unladen): 4.0 / 4.2 km/h
• Lift Speed (Laden/Unladen): 92 / 136 mm/s
• Gradeability (Laden/Unladen): 6 / 8 %
• Drive Motor: AC 0.75 kW
• Lift Motor: DC 2.2 kW
• Battery: 2 × 12 / 100 V/Ah
• Battery Weight: 2 × 27 kg
• Brake: Electromagnetic
• Controller: Curtis
• Service Weight (with battery): 507 kg

Applications: Perfect for handling heavy loads and materials with ease and precision.
