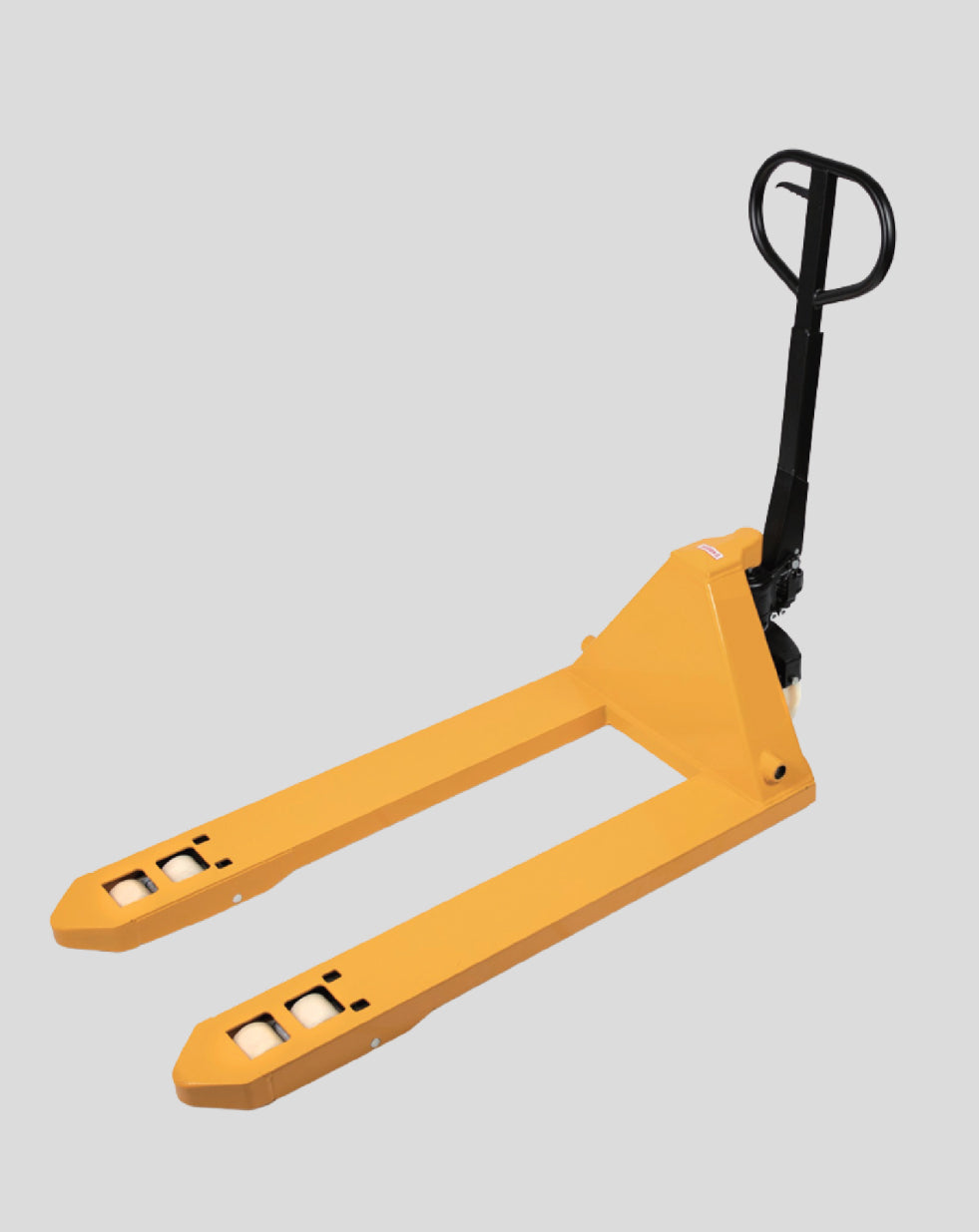

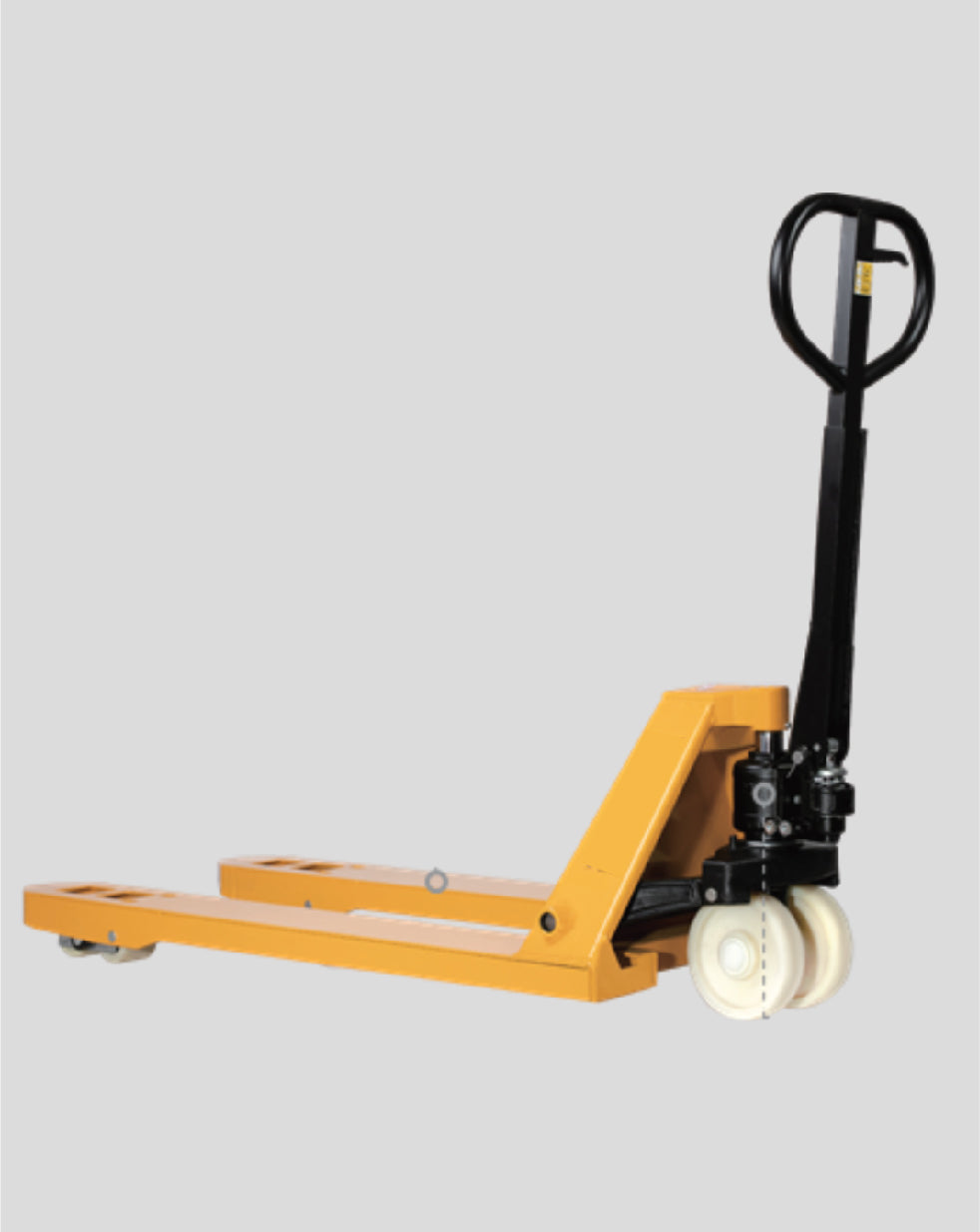

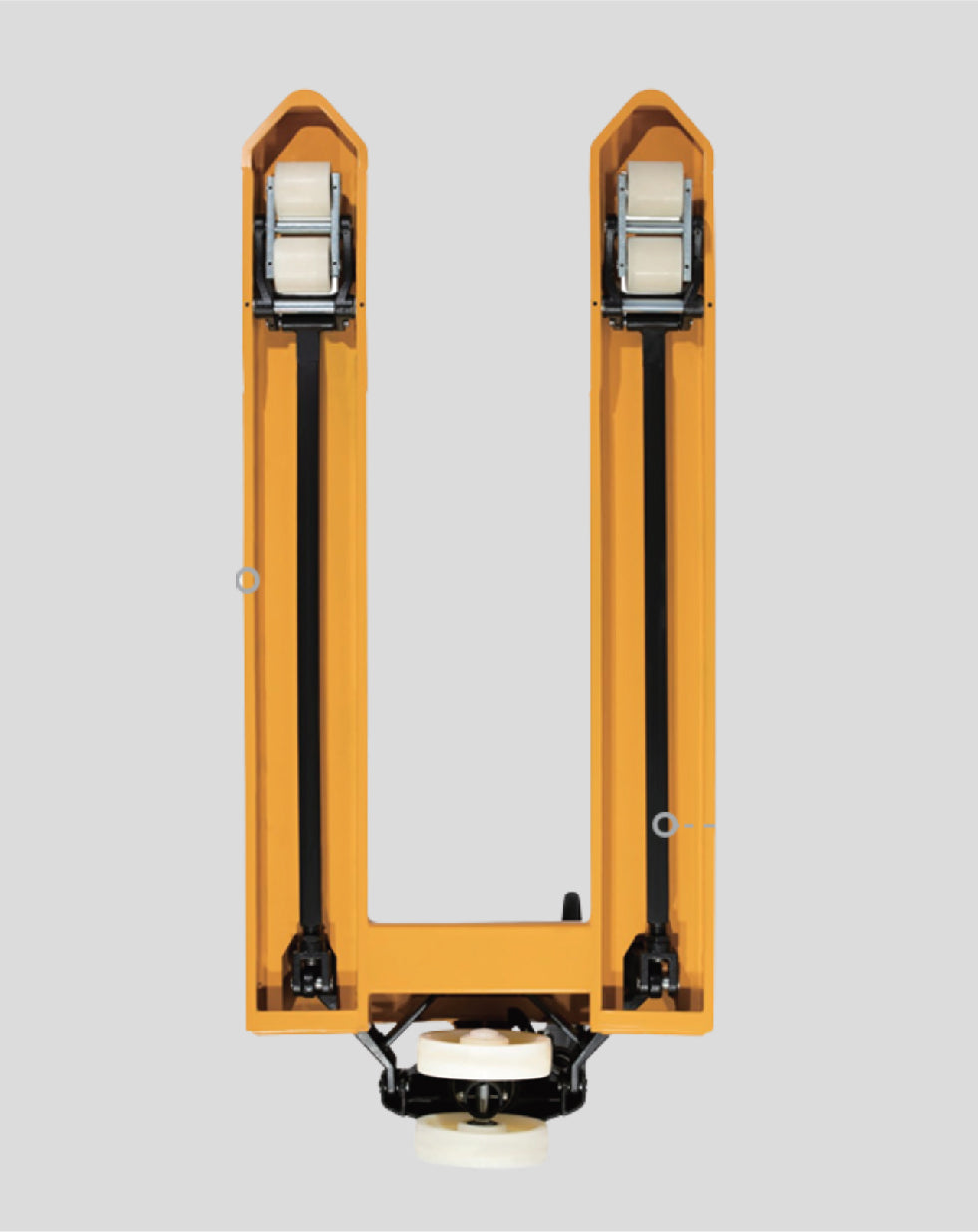

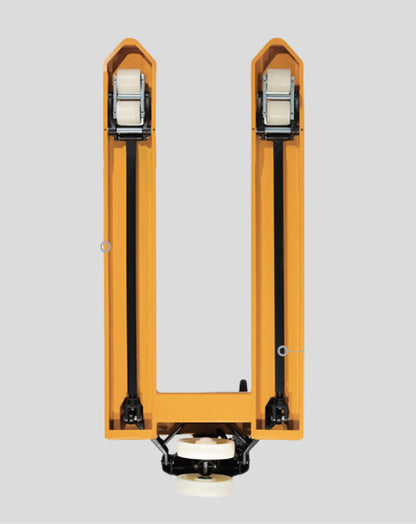

Heavy-Duty Hand Pallet Truck 5 Ton

Heavy-Duty 5 Ton Hand Pallet Truck EQBL5 in Pakistan.

EQBL5 Manual Hand Pallet Truck with 5,000 kg load capacity, reinforced forks, and robust steel frame. Features smooth lowering technology, ergonomic tiller handle, and heavy-duty wheels for stable and effortless pallet handling. Available in multiple fork sizes to suit different warehouse needs.

 Features:

• High Load Capacity: Handles up to 5,000 kg, perfect for heavy-duty tasks.

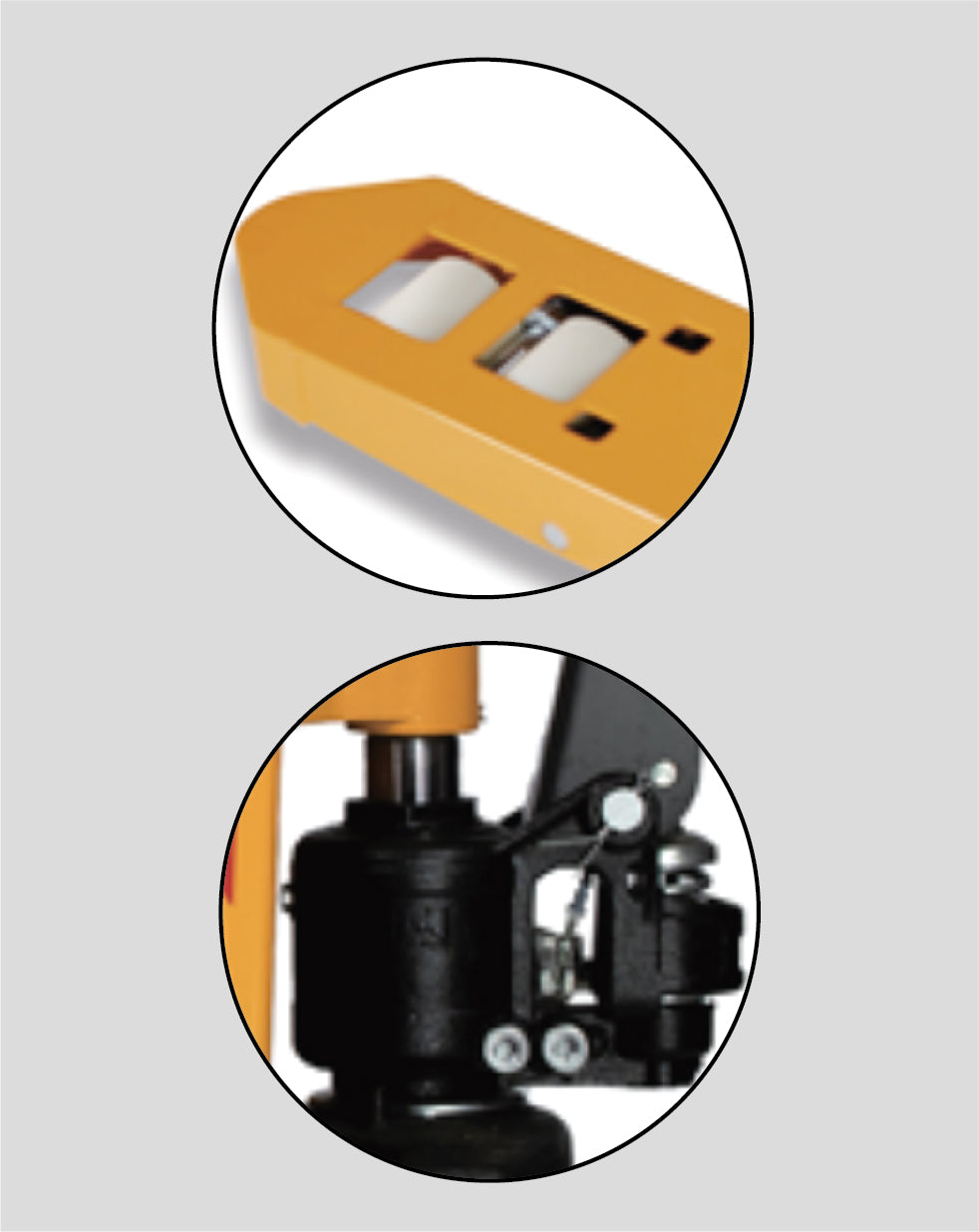

• Reinforced Forks and Frame: Forks use 16 mm thick steel; frame is built with 4.75 mm heavy-duty steel plate.
• Steady Lowering Technology: Ensures smooth and controlled descent to protect fragile goods.
• Adjustable Push Rods: 32×32 mm square steel bars for strength, durability, and easy adjustment.
• Durable Wheels: Large 200×50 mm steer wheels and 80×75 mm load wheels ensure smooth movement.
• Multiple Fork Sizes: Options available to suit various pallet dimensions.
• Ergonomic Tiller Handle: For improved control and comfort during manual operation.

Specifications:

Model: EQBL5
Drive: Manual
Load Capacity (Q): 5,000 kg
Load Centre Distance (c): 475 / 510 mm
Wheelbase (L0): 1190 / 1260 mm
Net Weight: 155 kg
Steer Wheel: ø200×50 mm
Load Wheel: ø80×75 mm
Wheels, Number (Steer/Load): 2 / 4
Tread Width, Steer (L1): 122 mm
Tread Width, Load (L2): 350 / 485 mm
Lift Height (h): 110 mm
Height of Tiller in Drive Position (h14): 1252 mm
Height Raised (h3): 195 mm
Height Lowered (h13): 85 mm
Overall Length (L3): 1522 / 1592 mm
Width Across Forks (b5): 550 / 685 mm
Fork Dimensions (s / e / l): 55 / 180 / 1150 mm or 55 / 180 / 1220 mm
Turning Radius (Wa): 1327 / 1396 mm
