Mix Value Counting Machine EQ-N66

EQ-N66 Mix Value Counting Machine in Pakistan with 8 Currencies Mix Value Counting Option.

The EQ-N66 Mix Value Counting Machine supports 8 currencies with advanced UV, MG, and IR counterfeit detection. It features a 3.5-inch TFT display, mixed denomination value counting, denomination sorting, and error detection. With a speed of 1000 notes per minute, add/batch/report modes, and USB upgrade support, it’s ideal for banks, retailers, and businesses handling high cash volumes.

Features:

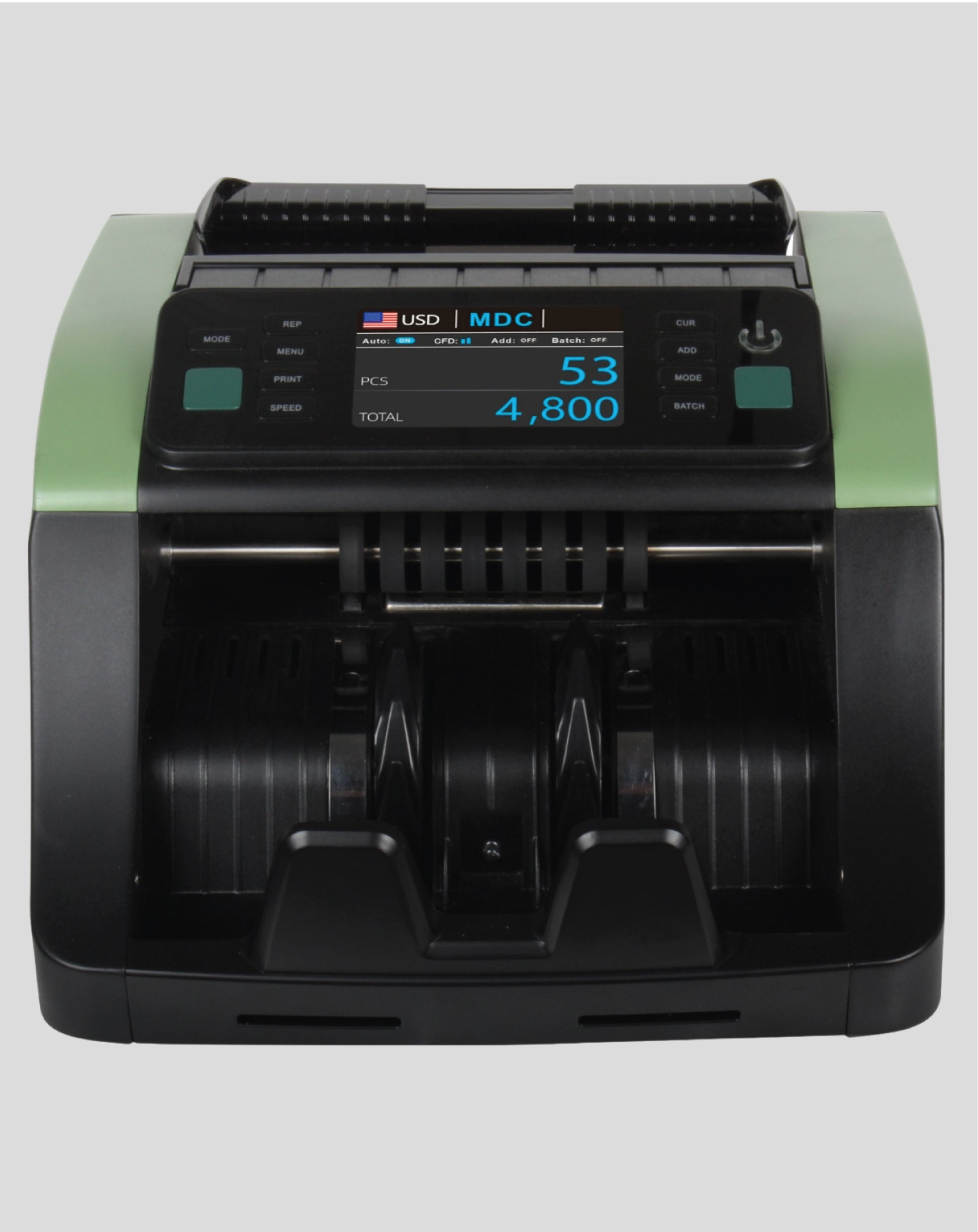

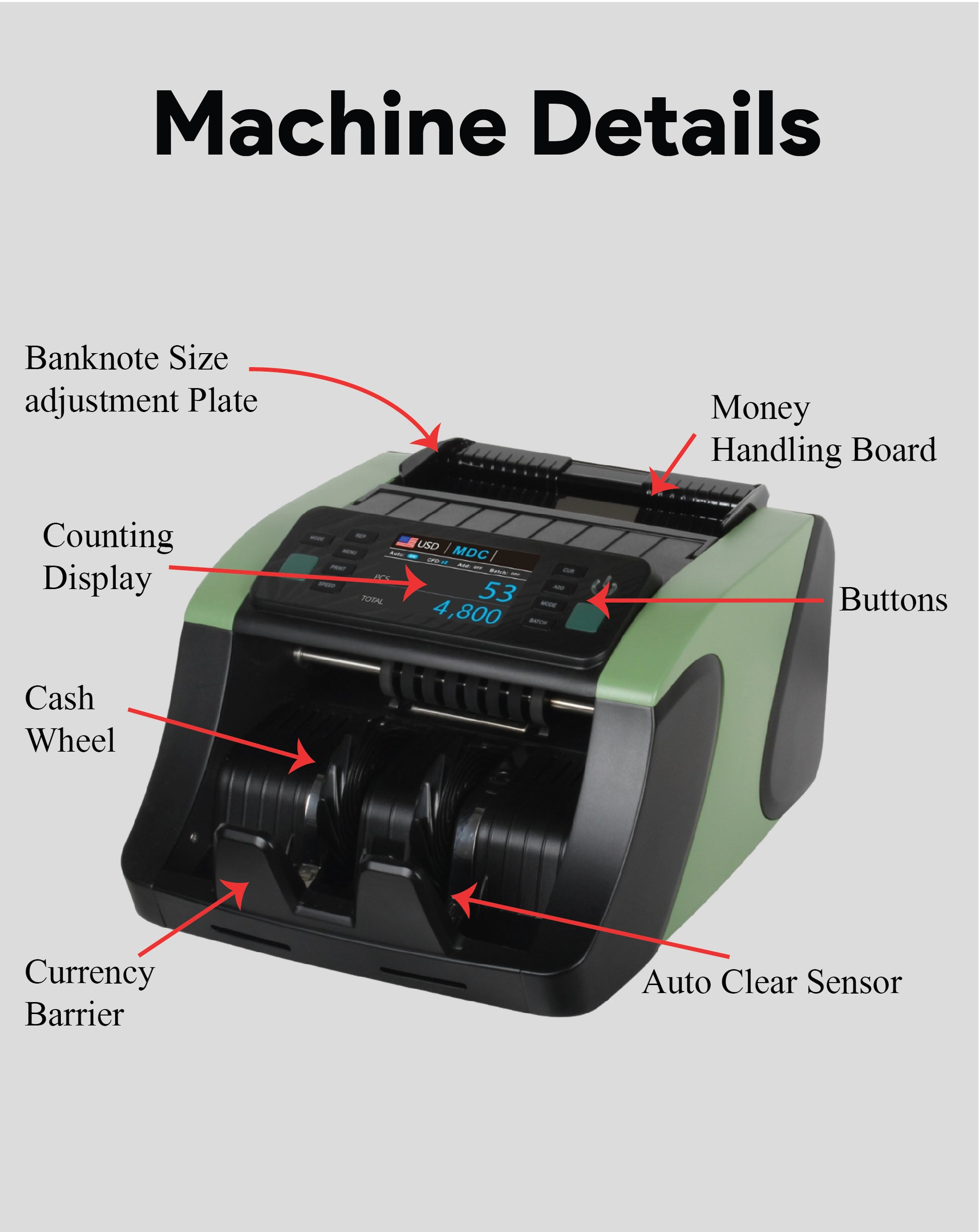

• 3.5-inch TFT display for a clear and user-friendly interface
• UV (Ultraviolet), MG (Magnetic), and IR (Infrared) image detection for effective counterfeit prevention
• Multi-language interface suitable for global users
• Automatic currency identification with instant recognition of various currencies
• Mixed denomination value counting to calculate the total value of assorted notes
• Denomination sorting function to organize bills by their value
• Error detection for identifying half-notes, double-notes, and chain-notes
• Add, Batch, Report, and Print operational modes for flexible and efficient use
• Software upgradable via USB port for future compatibility
• Optional external customer display and thermal printer (built-in or external)

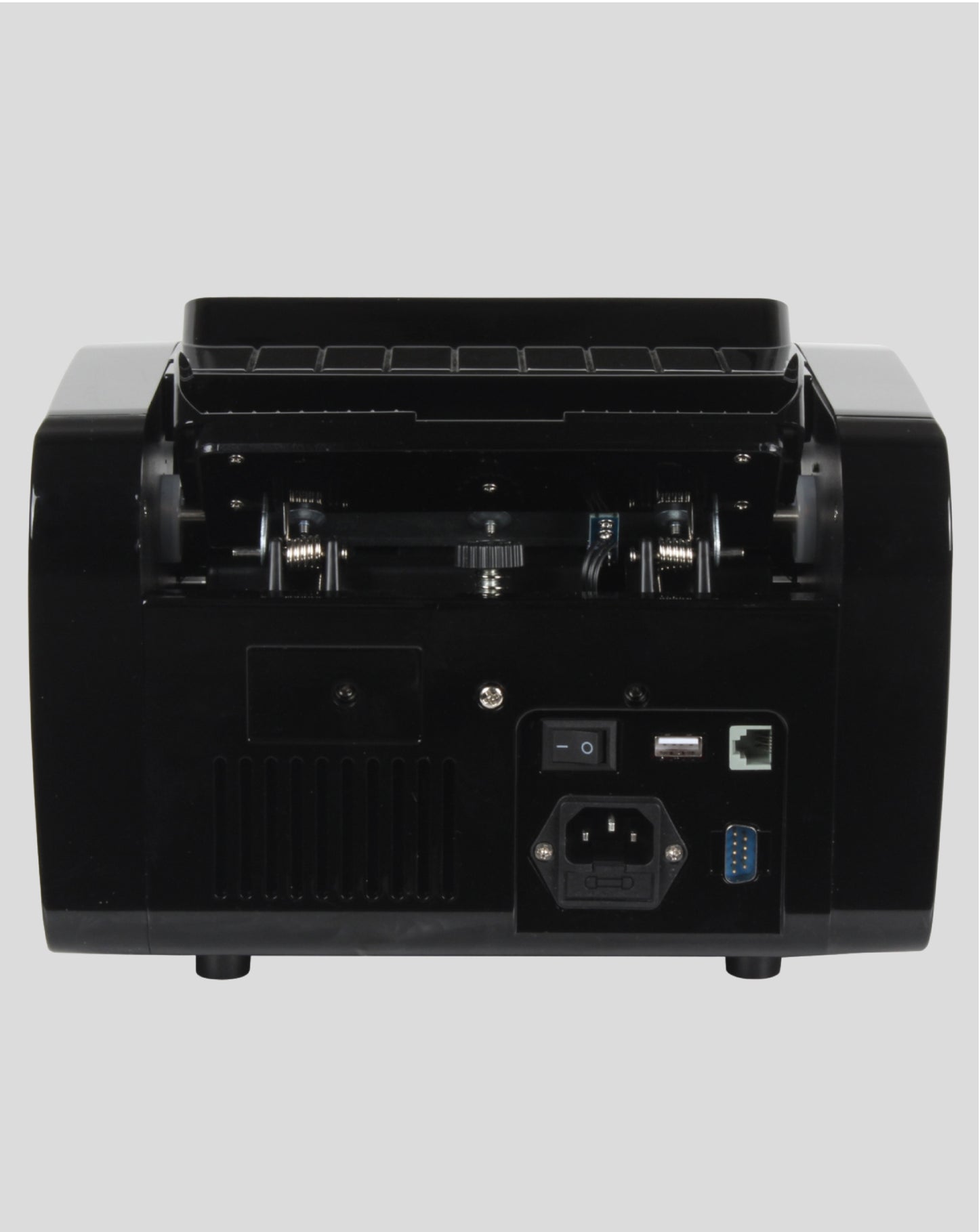

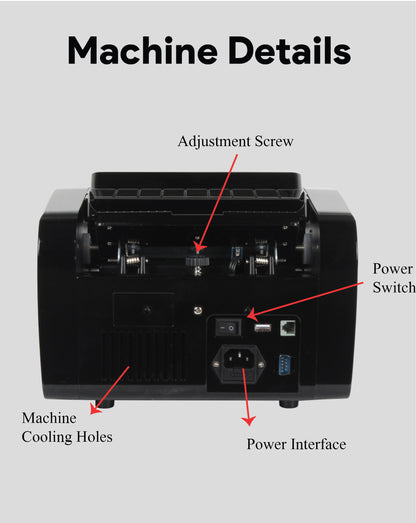

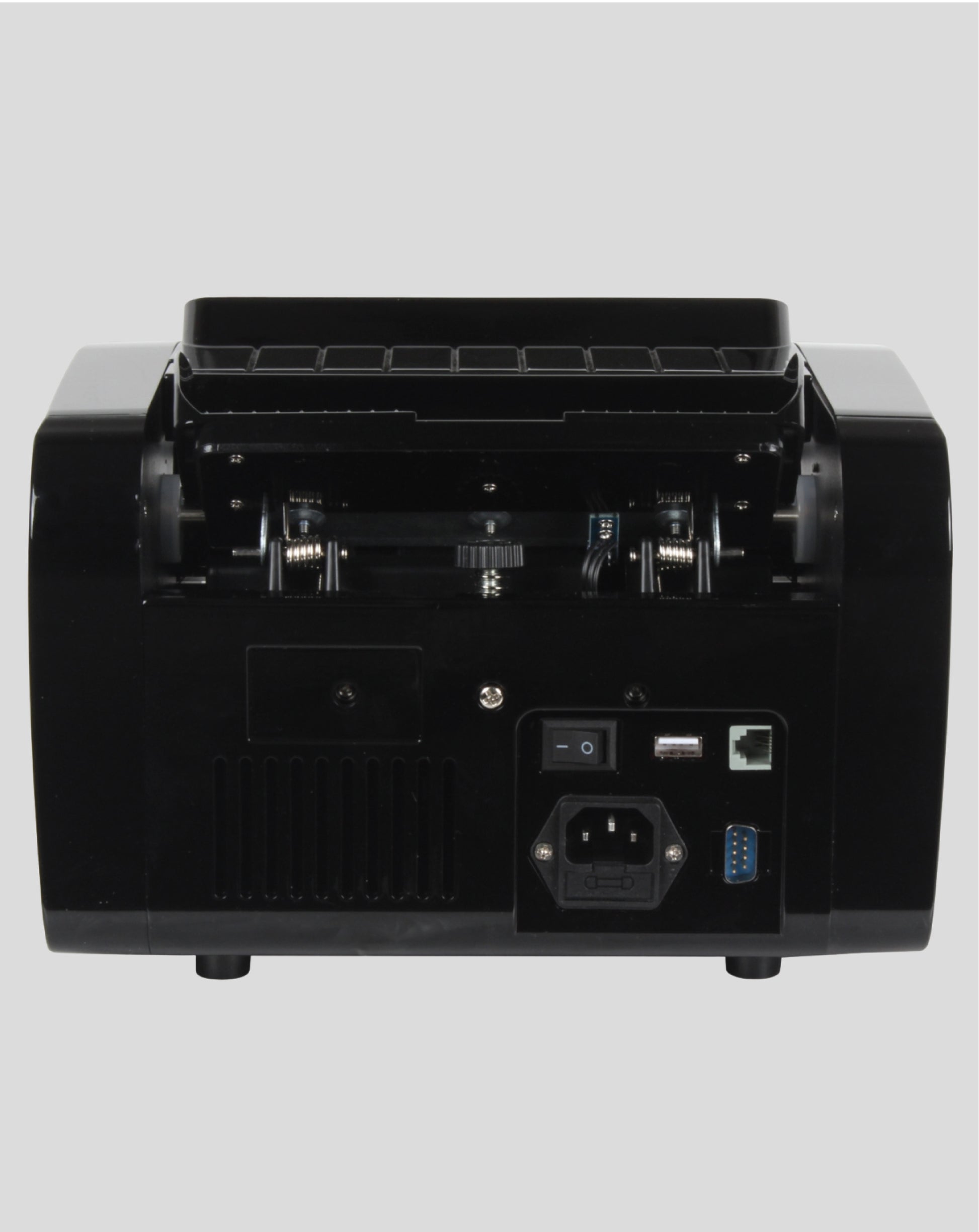

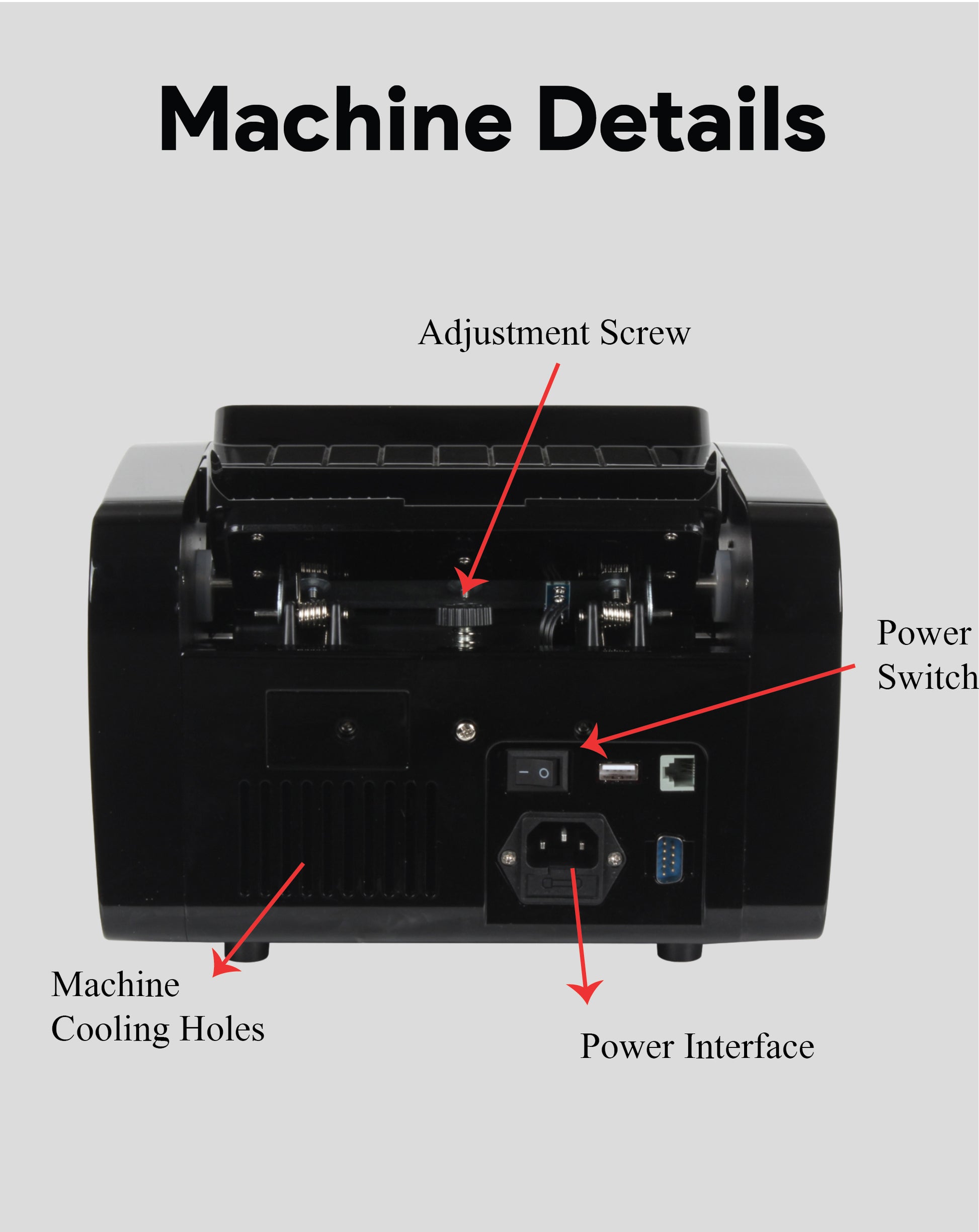

• RS-232, USB, and RJ-11 connectivity interfaces for integration with peripheral devices.

Specifications:

• Hopper capacity: 200 bills
• Stacker capacity: 200 bills
• Counting speed: 1000 bills per minute
• Dimensions: 310 × 265 × 175 mm
• Power supply: AC 220V ±10% at 50Hz or AC 110V ±10% at 60Hz
• Supported note size: from 50 × 110 mm to 90 × 190 mm
• Supported note thickness: 0.075 mm to 0.15 mm
• Counting display: 4 digits
• Batch display: 3 digits
• Net weight: 6.0 kg
• Gross weight: 6.5 kg
• Power consumption: 80W
