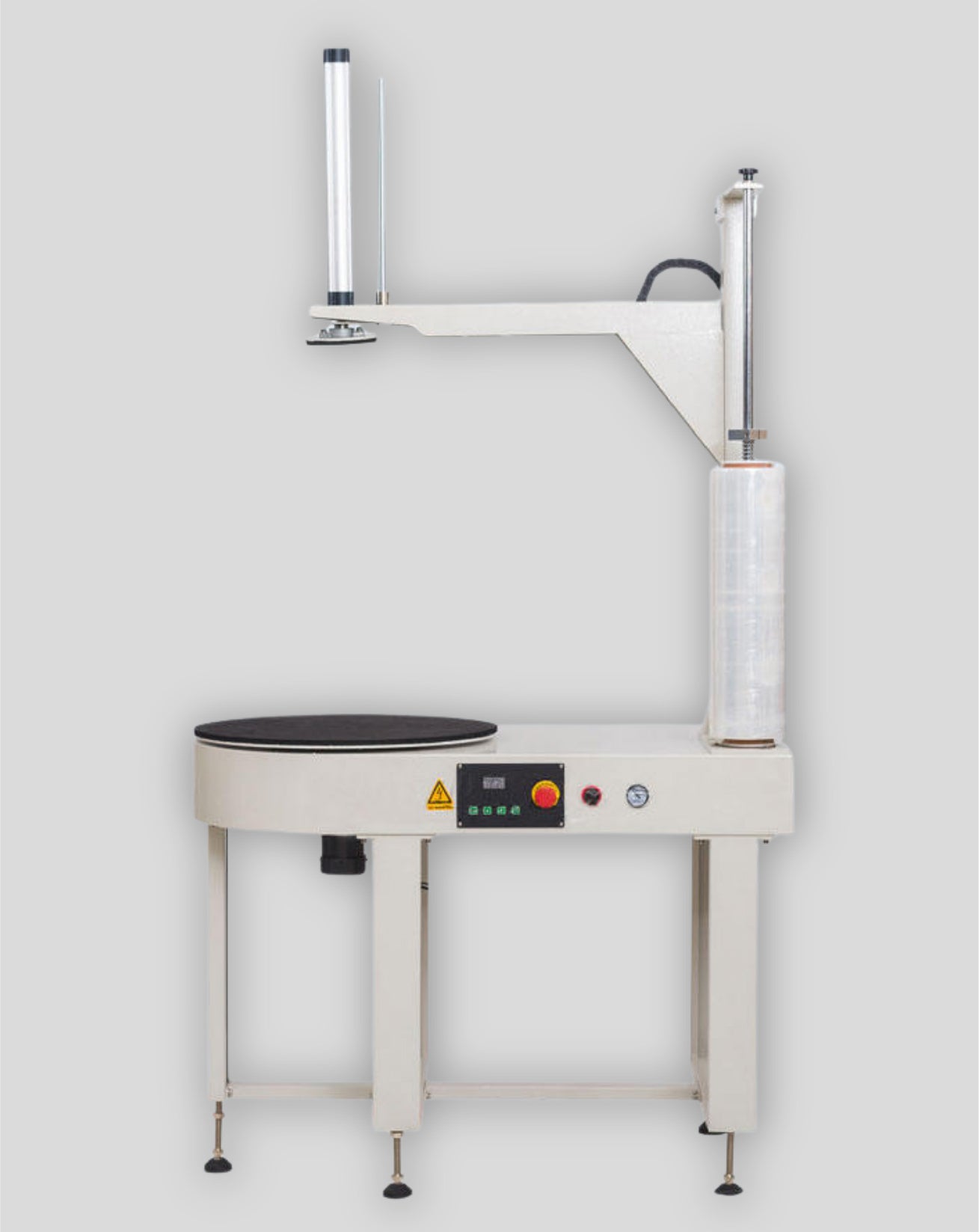

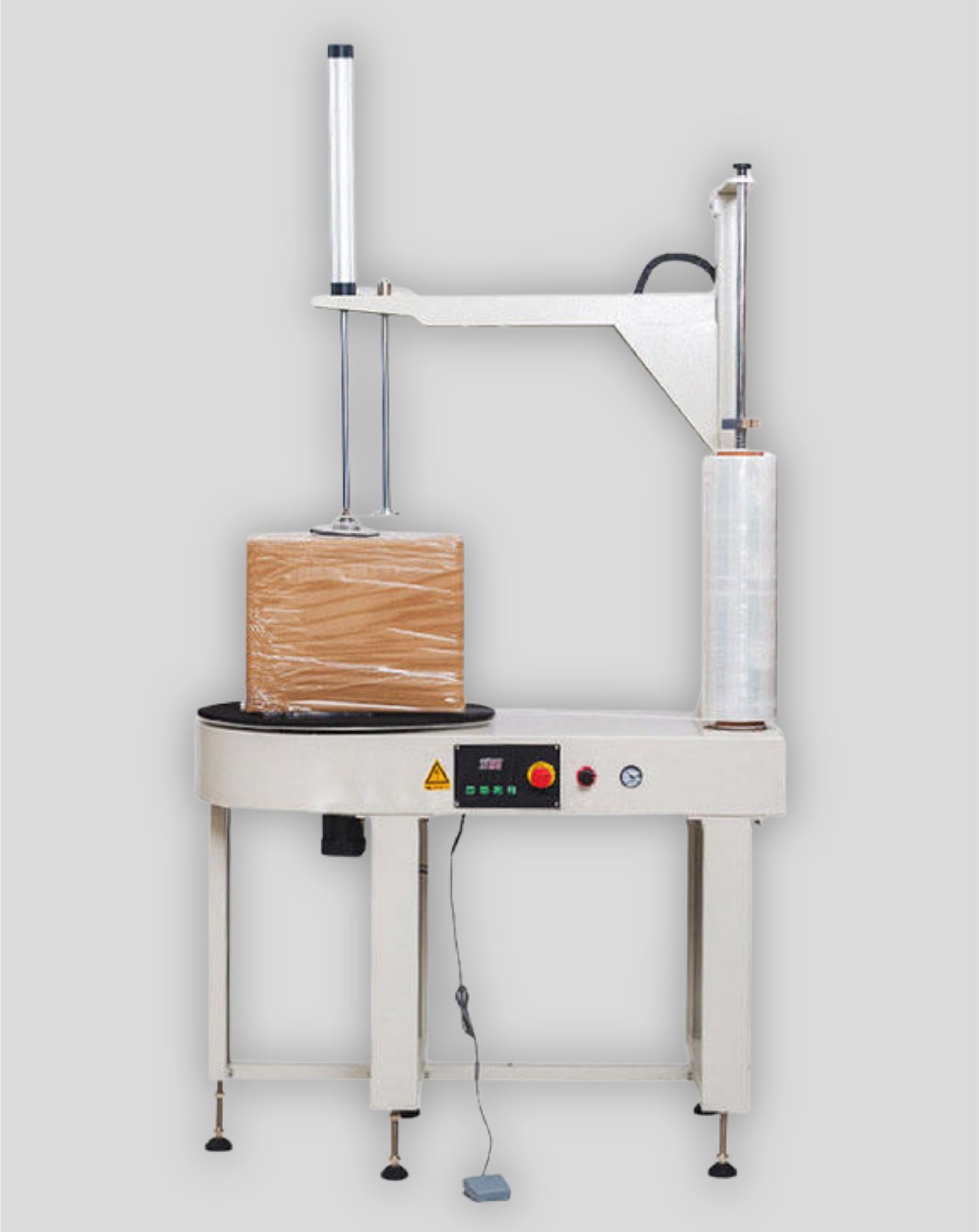

Semi-Auto Carton Box Wrapping Machine

Semi-Automatic Carton Box Wrapping Machine in Pakistan.

The EQDBC-800S semi-automatic stretch film carton box wrapping machine is specially designed for packing small and medium-sized goods, including carton boxes and pallet-less products placed directly on the rotating turntable. The top press system securely holds unstable loads during wrapping, ensuring safe, tight, and consistent packaging. This machine is ideal for lightweight products that can be manually loaded and unloaded.

Features:

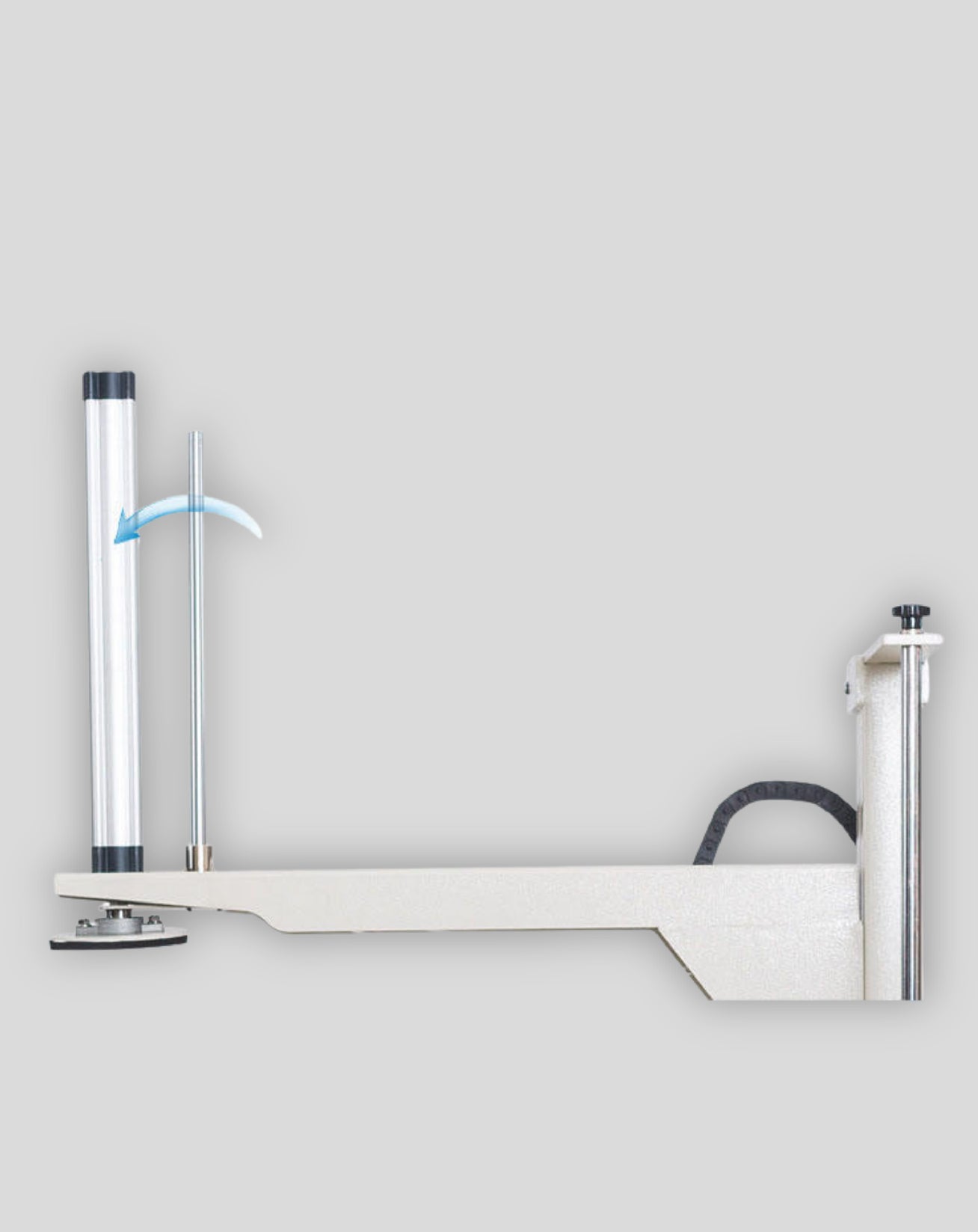

• Top Press System for stable and secure wrapping of unstable goods
• Semi-Automatic Operation with easy manual loading and unloading
• Rotating Turntable ensures uniform and tight stretch wrapping
• Adjustable Film Tension to suit different product sizes
• Compact and Robust Design suitable for limited workspaces
• Wide Application for cartons and pallet-less goods
• Low Power Consumption for energy-efficient operation

Specifications:

• Model: EQDBC-800S (Top Press)
• Turntable Speed: 30 r/min
• Maximum Packing Size: L900 × W900 × H900 mm
• Maximum Load Capacity: 80 kg
• Film Roll Inner Diameter: 3 inches
• Film Thickness: 17–35 μm
• Film Width: 100–900 mm
• Film Roll Outer Diameter: ≤ 300 mm
• Power Supply: 220V / 50–60Hz
• Power Consumption: 0.12 KVA
• Machine Dimensions: 1150 × 600 × 1861 mm
